PRODUCT OVERVIEW
Equinox Soffit combines refined style with durable performance and functional ventilation for rooflines.
Classic Triple 3-⅓″ profile (10″ wide) with crisp, clean lines.
Premium .045″ thick vinyl construction for strength and weather durability.
Available in solid and hidden vent profiles to suit different airflow needs.
Hidden vent option helps promote airflow under rooflines to reduce trapped moisture.
CLEAN STYLE WITH ENHANCED VENTILATION
Equinox Vinyl Soffit provides a refined finish to roof eaves while promoting essential airflow to help protect your home’s structure. Designed with a classic Triple 3-⅓″ profile and premium .045″ thick vinyl construction, Equinox delivers crisp, defined lines and long-lasting durability.
Available in both solid and hidden vent configurations, Equinox offers exceptional versatility to match your design goals, aesthetic preferences, and performance needs. The hidden vent option promotes directional airflow to help reduce trapped moisture in attic spaces — helping prevent decay, improve ventilation, and prolong roof life — all with minimal maintenance.

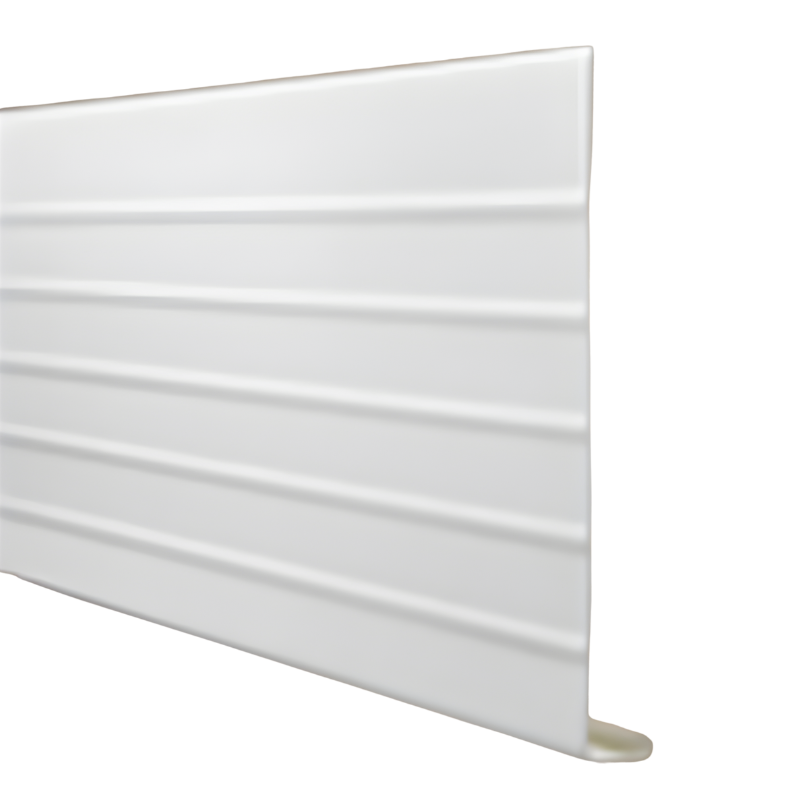

Equinox Soffit
Equinox Vinyl Soffit provides a strong, stylish solution with solid and hidden vent options, enhancing roofline ventilation and exterior detail.
COLOUR OPTIONS
Please hover on the colour to see the actual appearance or click on a color below to see a larger view.
GALLERY
Explore our gallery of completed projects and premium building materials. Each image highlights the quality, craftsmanship, and design versatility that define our products. From durable siding and rainware to finishing details that elevate any build, these examples showcase how our materials perform beautifully in real-world applications.
PROFILE DETAILS
Equinox Soffit – Solid
Length / Piece: 12′ (3.66 m)
Width / Piece: 10″ (25.4 cm)
Panels / Carton: 20
Coverage / Carton: 200 sq. ft. (18.58 m²)
Nominal Thickness: .045″ (1.14 mm)
Equinox Soffit – Hidden Vent
Length / Piece: 12′ (3.66 m)
Width / Piece: 10″ (25.4 cm)
Panels / Carton: 20
Coverage / Carton: 200 sq. ft. (18.58 m²)
Nominal Thickness: .045″ (1.14 mm)
Net Free Air Intake / Foot: 8.4 sq. in.
ACCESSORIES
1/2″ J-Channel
Profile Size: 1/2″
Length / Piece: 12′ (3.66 m)
Pieces / Carton: 50
Coverage / Carton: 600 LF (182.88 m)
Available Colours: Frost, Bone, Hearthstone, Brownstone, Flagstone, Nickel, Stratus, Cypress, Indigo
1/2″ F-Channel
Profile Size: 1/2″
Length / Piece: 12′ (3.66 m)
Pieces / Carton: 30
Coverage / Carton: 360 LF (109.73 m)
Available Colours: Frost, Bone, Hearthstone, Brownstone, Nickel, Flagstone, Stratus, Cypress, Indigo
Fascia
Length / Piece: 12′ (3.66 m)
Pieces / Carton: 10
Coverage / Carton: 120 LF (36.58 m)
Available Colours: Frost
Fascia-J
Length / Piece: 12′ (3.66 m)
Pieces / Carton: 20
Coverage / Carton: 240 LF (73.15 m)
Available Colours: Frost
PRODUCT DESCRIPTION
Code
Description
Primary OUM
Squares/Box
PRODUCT DETAILS
PRODUCT DETAILS
ACCESSORY DETAILS
ACCESSORY DETAILS
PRODUCT SPECIFICATIONS
View full specifications for all product styles and components included in this collection.
DOCUMENTS
Product Specifications
